PALOMAT® AMR
The groundbreaking collaboration between PALOMAT® pallet magazine and mobile robots lifts your internal logistics workflow to an even higher level. Bringing your business one step closer to the automated pallet handling of the future.
- If you are looking to future-proof your business PALOMAT® AMR is designed for you
- You elevate your internal logistics while minimizing the need for manual pallet handling
- You are guaranteed a healthy work environment, streamlined pallet flow in your production and increased efficiency
AC operated
Collaborates with
mobile robots
Lifting Capacity
15 pallets/500 kg
24/7-365
Technical support

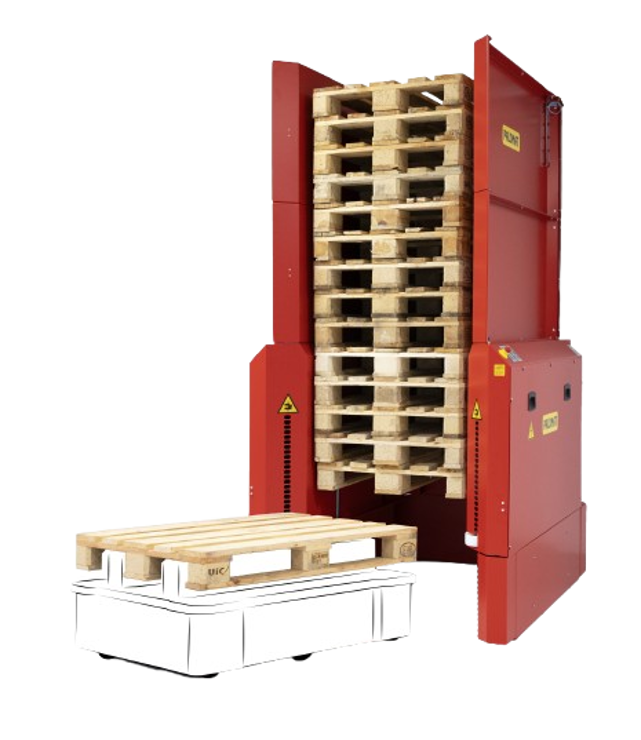

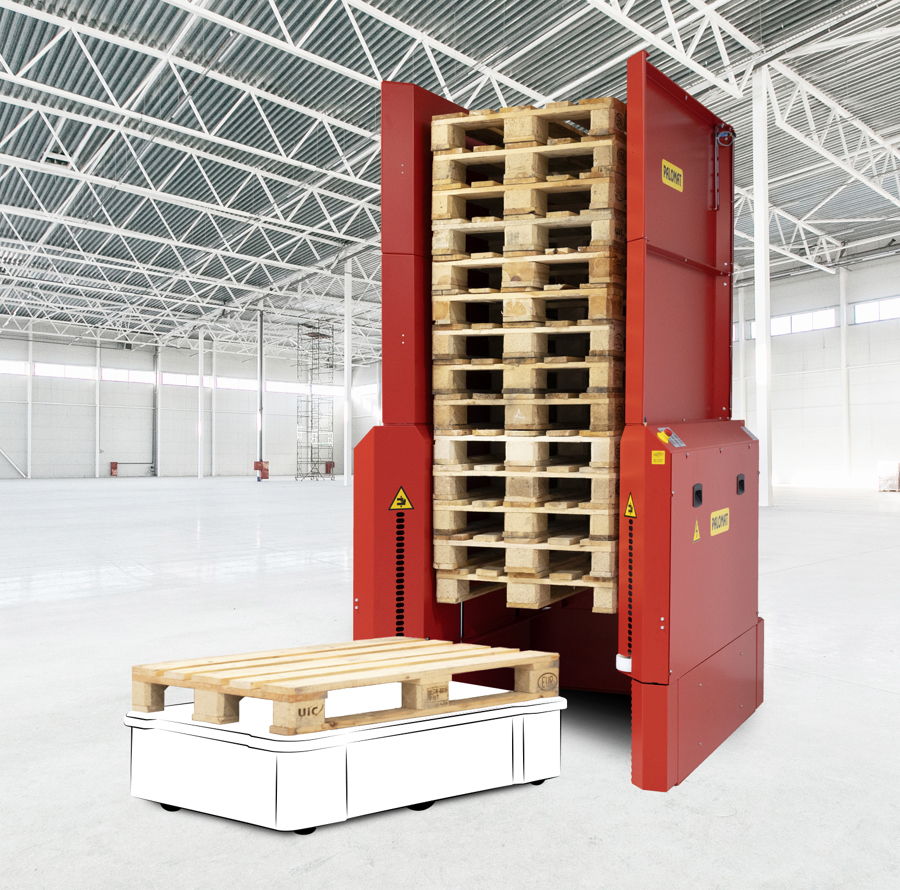

PALOMAT® AMR works intelligently with mobile robots to optimize your internal logistics, freeing up the manpower previously used for manual pallet stacking and unstacking the mobile robots.
PALOMAT® AMR is designed to operate across all industries, delivering a future-proof solution that streamlines your workflow and strengthens your company’s infrastructure.
We can tailor the PALOMAT® to your mobile robot so you get a 100% customised solution.
We work closely with leading mobile robots manufacturers to develop PALOMAT® solutions that integrate perfectly with your solution. Interested? Click the logos below to learn more about our partnerships.
Why you should choose PALOMAT® AMR
- Saves time and releases manpower for other value-adding tasks
- Improves the workflow of any moobile robot with automatic pallet handling
- Ensures constant and effective stacking/destacking of the mobile robot
- Acts as a fully automatic pallet buffer and docking station
- Streamlines internal logistics with an efficient pallet flow
- Improves the work environment through safe cooperation with humans and other machines
- Eliminates manual pallet handling
- Easy installation and electrically powered from a 230V plug
- Easy to connect with any mobil robot and ready for communication with interface
Specifications
-
Capacity
500 kg Energy 220-240VAC / 50 Hz Standby Consumption 23 W Consumption during operation 550 W (at max. load of 500 kg) Noise Level 70db(A) Max fuse 16A D01 Actuator Linak Steering Siemens S7-1200 Control EL/H55-H01-S01 Software PLC U55-S01 -
- Safety frame for 15 pallets
- Maximum indicator for 15 paller
- Technical documentation
The PALOMAT® AMR is delivered with a software – a complete program in the PLC – communicating with the interface.
PALOMAT® AMR is delivered with an interface 24VDC I/O signals for external equipment, making it possible to exchange signals between the PALOMAT® and the mobile robot.
-
PALOMAT® AMR - OPC UA
Outputs: [continuous signal]
Signal – PALOMAT® empty(destacking)
Signal – New pallet ready to be picked up
Signal – PALOMAT® full(stacking)
Signal – PALOMAT® ready for pallet
Signal – Fail
Inputs: [puls 3-4 sek.]
Signal – Choose destacking
Signal – Choose stacking
Signal – Emptying the PALOMAT® (full stack)
-
Article No.
Pallet size Lifting capacity 152921* 1200x800x144 500 kg 152923* 1200x1200x144 500 kg 152824* 1219x1016x141 500 kg * Incl. safety frame for 15 pallets and maximum indicator.
All models can handle up to 15 pallets.
The PALOMAT® must not be flushed, but only wiped with a damp cloth using a weak alkaline cleaning agent.
-
