Pallet handling in cooperation with SAFELOG

PALOMAT® AMR for SAFELOG

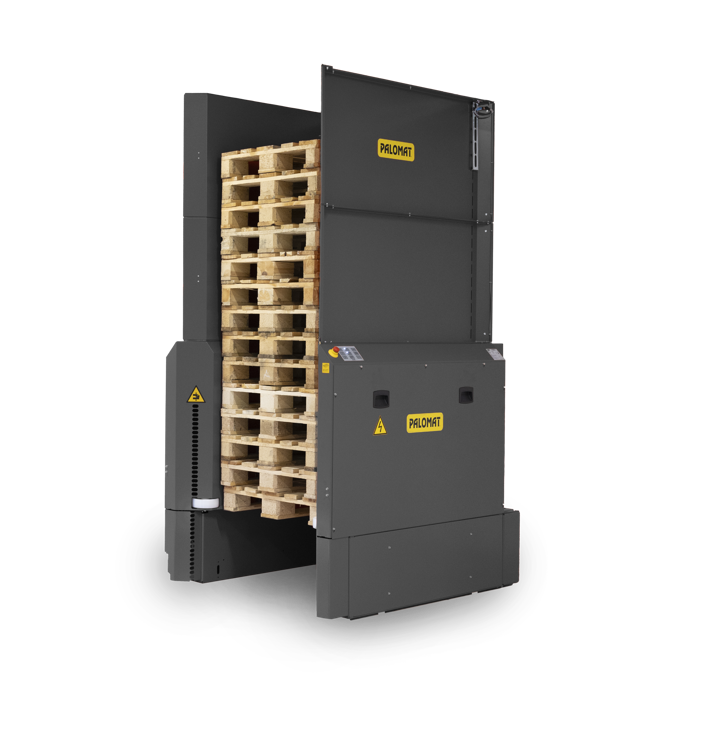

Safe and simple pallet handling with PALOMAT® AMR for SAFELOG

Take your workflow to the next level with the collaboration between PALOMAT® AMR and SAFELOG, and free up manpower for other important tasks.

Request quote

AC operated

Collaborates with

SAFELOG X1, L2, and GT1

Lifting Capacity
15 pallets/500 kg

24/7-365

Technical support support

How PALOMAT® AMR for SAFELOG works

In collaboration with SAFELOG we have made it possible for you to optimise your internal logistics and workflow. Lift your workflow to an even higher level by allowing PALOMAT® AMR and SAFELOG’s AGVs to work together and release manpower for other valuable tasks. With the help of an integrated interface, PALOMAT® AMR and SAFELOG works safely together - on their own - between your employees.

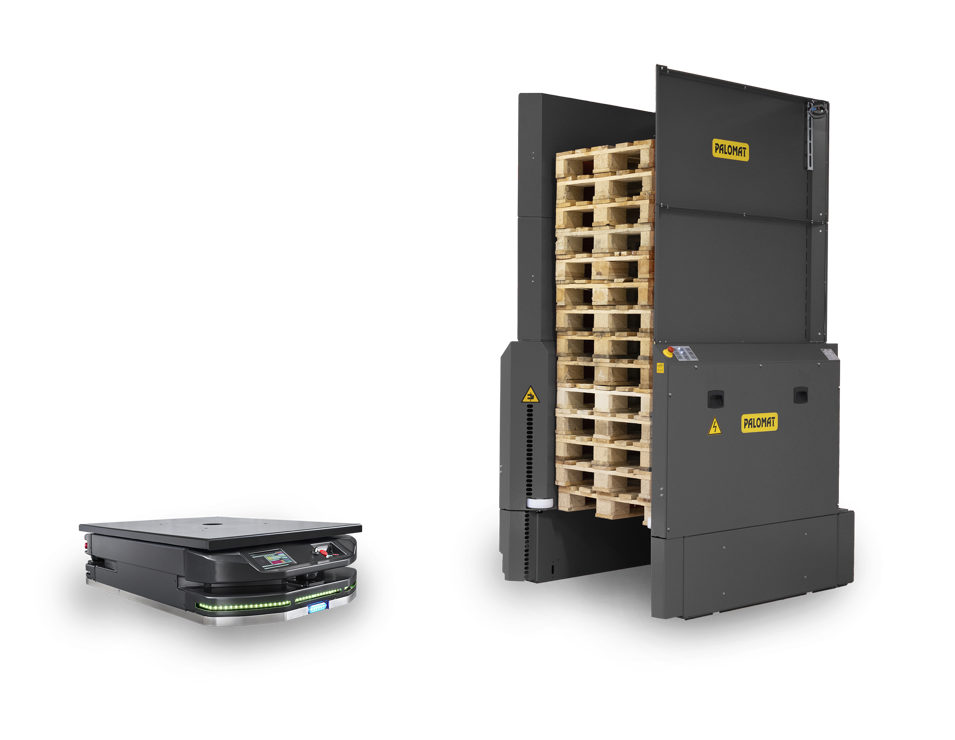

PALOMAT® AMR can collaborate with SAFELOG X1, SAFELOG L2 and SAFELOG GT1, which are all AGVs that communicate via internal signal exchange

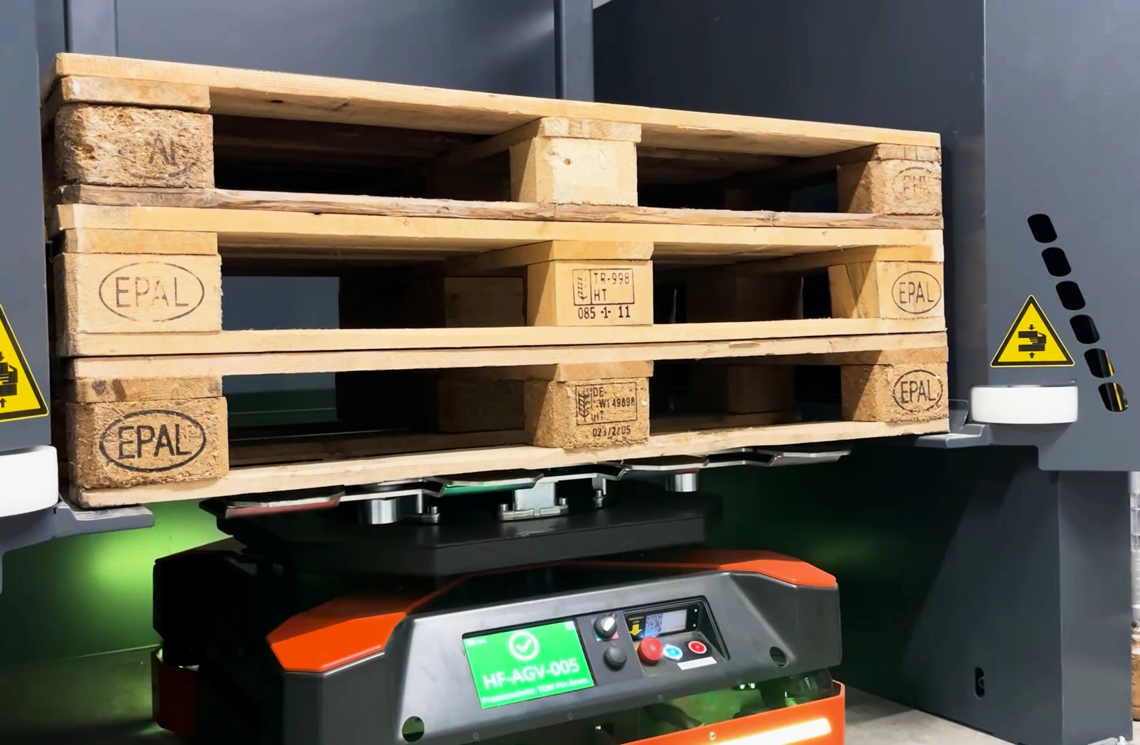

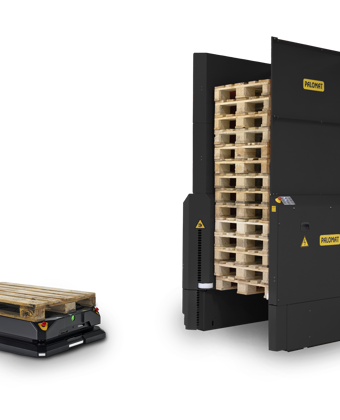

The pallet magazine automatically stacks and destacks the pallets on SAFELOG’s AGVs, which serves as a pallet buffer and docking station that is always automatically running
This allows you to create an internal logistics that is completely automated and secure

PALOMAT® AMR are like SAFELOG´s AGVs, designed to fit into all industries, and together they ensure safe and simple pallet handling in production and inventory. With this strong and flexible collaboration, you are guaranteed a future-proof investment with PALOMAT® AMR.

Why choose PALOMAT® AMR for SAFELOG

Improves SAFELOG´s workflow by automating pallet handling
Ensures uniform and consistent stacking/destacking on SAFELOG´s AGV´s as well as a fully automatic pallet buffer and docking station
Saves time and releases manpower for other value-adding tasks

Get an offer

Creates a better and safer work environment without manual pallet lifting
Easy connection with SAFELOG's AGV and ready to communicate with the interface
Plug & Play – easy installation and 100% electrically powered

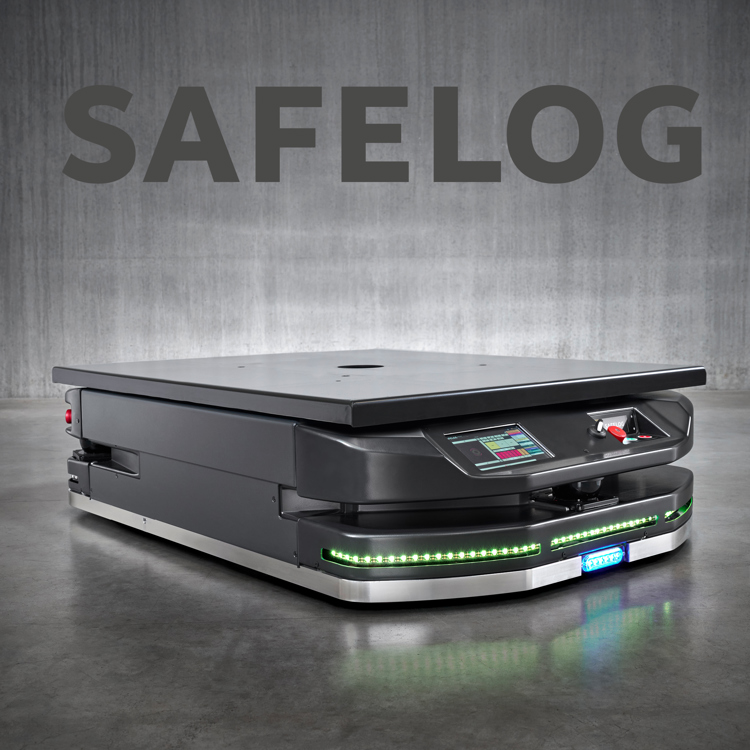

SAFELOG - Our Partner

SAFELOG GmbH is a leading software-based provider for the development and intelligent linking of innovative logistics systems based in Markt Schwaben near Munich.

The portfolio includes hardware and software solutions for patented, intuitive picking systems as well as several models of mobile transport robots (AGV). At the heart of the AGVs is the highly flexible agent-based control software with swarm intelligence without a higher-level control station. At the same time, all mobile robots are VDA 5050-ready and can operate under a central fleet manager.

Capacity	500 kg
Energy	220-240VAC / 50 Hz
Standby Consumption	23 W
Consumption during operation	550 W (at max. load of 500 kg)
Noise Level	70db(A)
Max. Fuse	16A D01
Actuator	Linak
Steering	Siemens S7-1200
Control	EL/H55-H01-S01
Software PLC	U55-S01

Includes:

Safety frame for 15 EUR-pallets / 500 kg

Maximum indicator for 15 EUR-pallets

Technical documentation

Example sequence diagram for programming

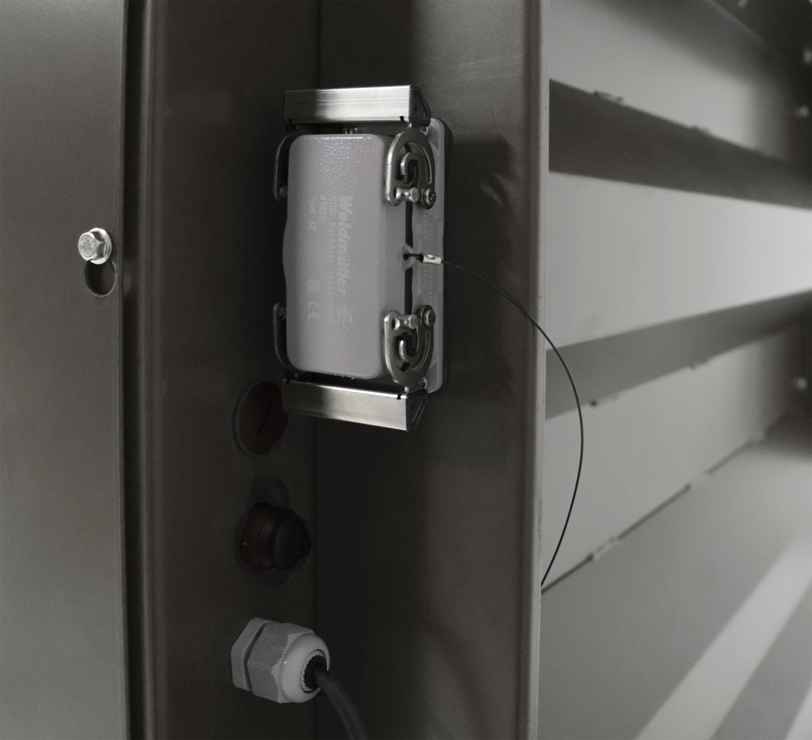

PALOMAT® AMR is delivered with an interface 24VDC I/O signals for external equipment, making it possible to exchange signals between the PALOMAT® and AMR.

As the PALOMAT® is equipped with various sensors, wires and pipes, cleaning must only be carried out with a weak alkaline cleaning agent. The PALOMAT® must not be flushed, but only wiped with a damp cloth.

Interface PALOMAT® AMR for SAFELOG specifications

Outputs: [Continuous signal]

Signal – PALOMAT® empty (de-stacking)

Signal – New pallet ready to be picked up

Signal – PALOMAT® full (stacking)

Signal – PALOMAT® ready for pallet

Signal – Error.

Inputs: [Pulse 3-4 sec.]

Signal - Choose de-stacking

Signal - Choose stacking

Signal - Emptying the PALOMAT® (full stack)

The PALOMAT® AMR is delivered with a software – a complete program in the PLC – communicating with the interface. Thus being prepared to communicate with the SAFELOG AGV.

PALOMAT® AMR for SAFELOG

Collaborates with SAFELOG X1, SAFELOG L2 og SAFELOOG GT1 and with the following pallet sizes.

Pallet size	Lifting capacity standard	Lifting capacity special	Numbers og pallets
1200x800x144	500 kg	700 kg	15 pallets
1200x1000x144	500 kg	700 kg	15 pallets
1200x1200x144	500 kg	700 kg	15 pallets
800x1200x144	500 kg	700 kg	15 pallets
1000x1200x144	500 kg	700 kg	15 pallets

Standard colour: RAL3002 red.

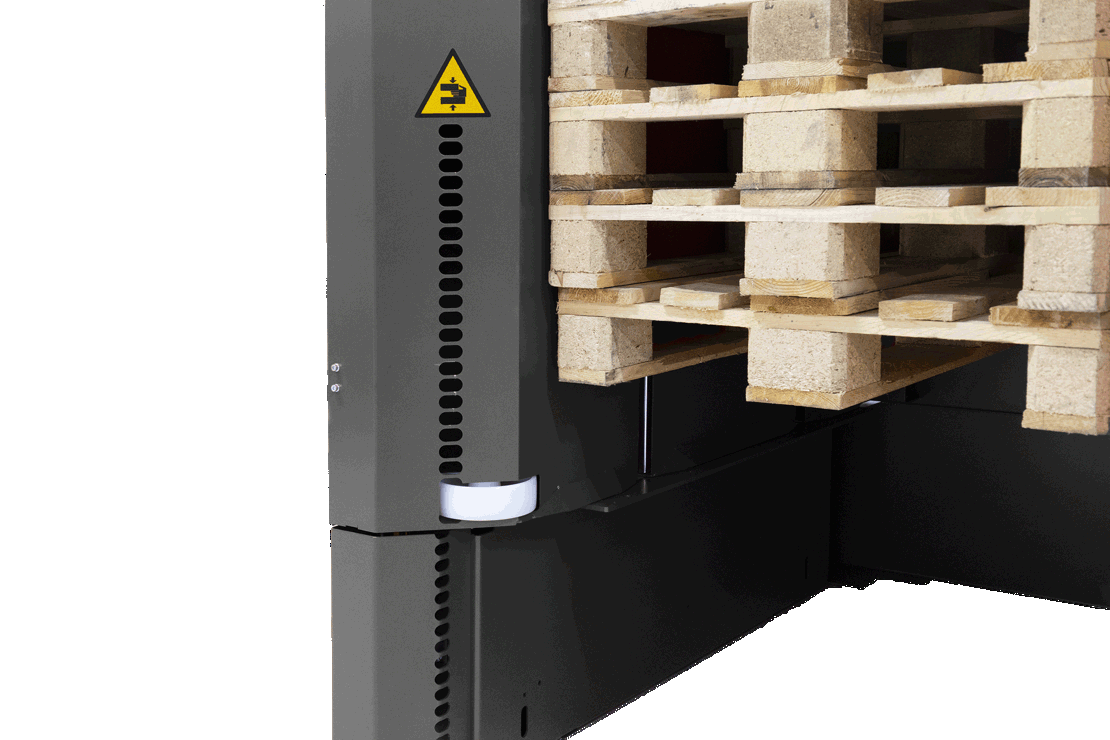

The machine in the product images is in the special color: RAL7016 grey.

Possible options for your PALOMAT® AMR for SAFELOG

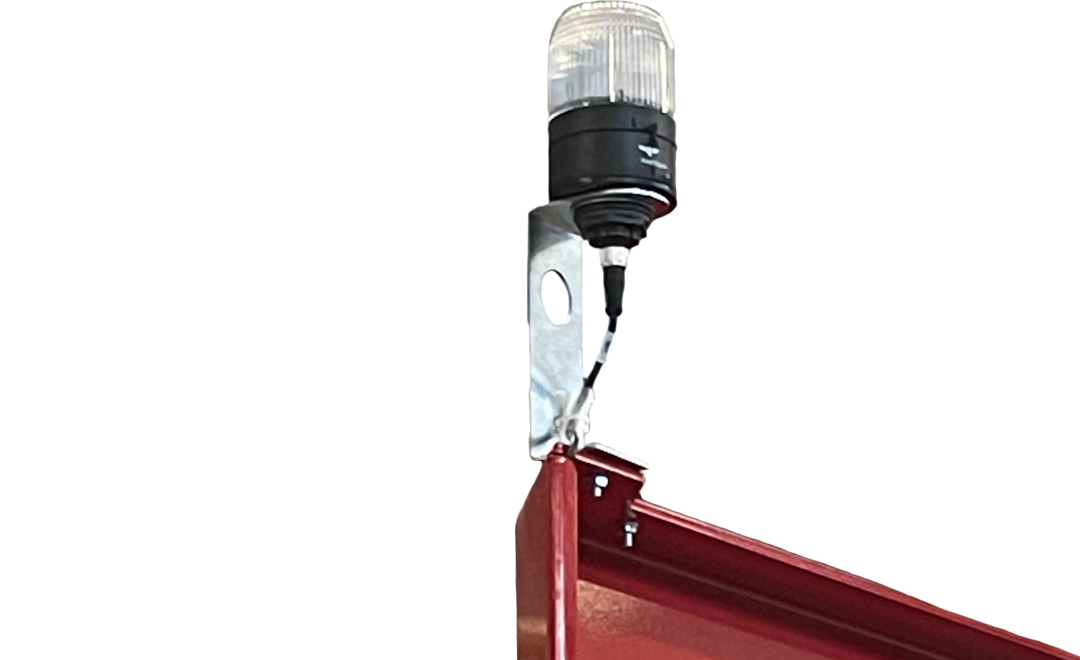

Signal tower incl. maximum indicator

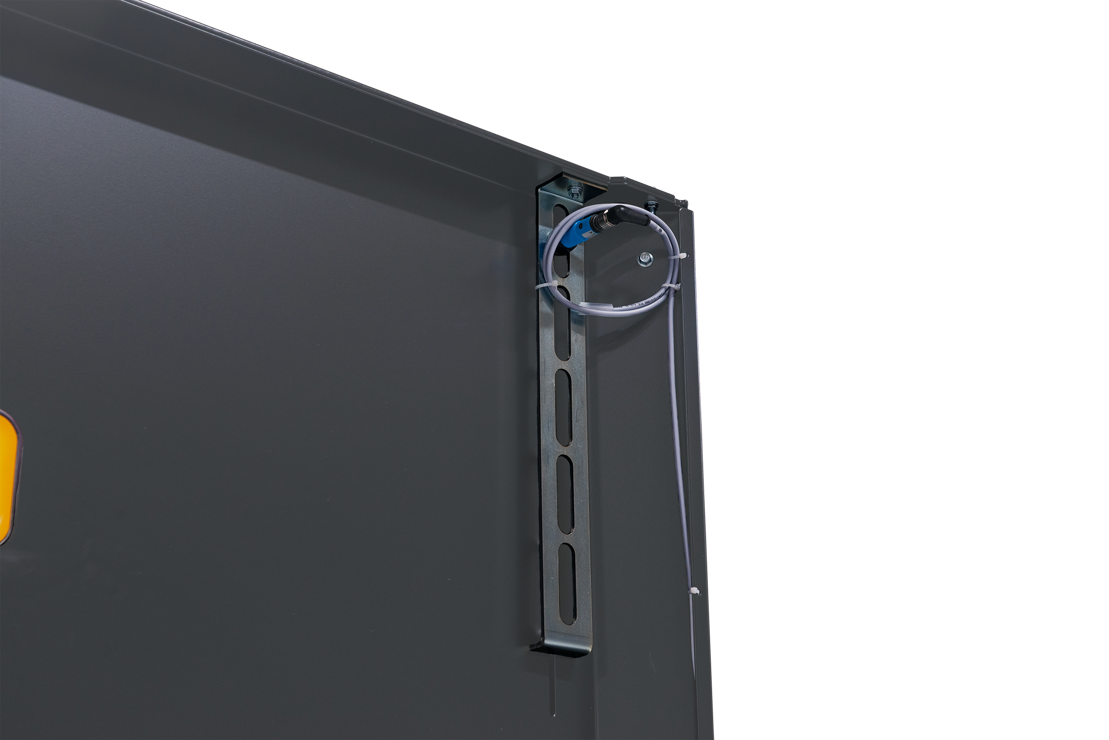

A signal tower with a three-colour LED, to assist the user in operating the machine. The signal tower includes Sick sensors that detects when the pallet stack is full or empty. If the Palomat needs to stop e. g. at 15 pallets, the signal tower with maximum indicator can be mounted in the safety frame or on a bar. When the maximum indicator is actuated, e. g. at 15 pallets, the lamp lights blue and the stack is automatically put down on the floor.

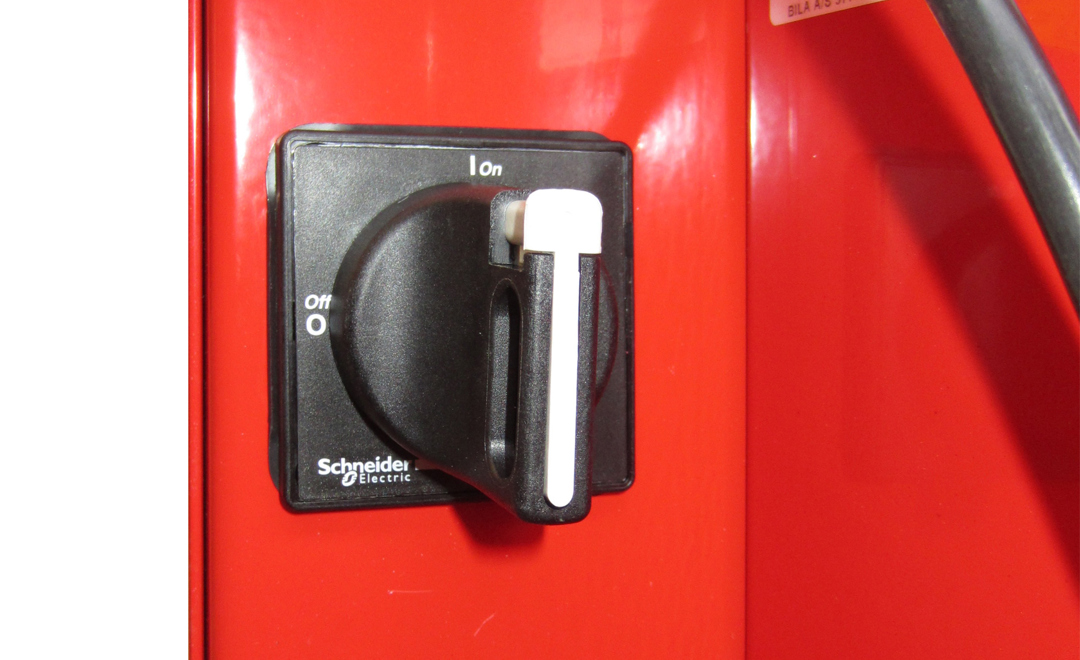

Switch disconnector

The switch disconnector enables disconnection from the main supply right on the machine. The switch disconnector can be locked, e.g. when servicing the machine.This is an advantage and a safety feature for maintenance of the PALOMAT® unit. The switch disconnector is positioned under the main supply.
