PALOMAT® Inline

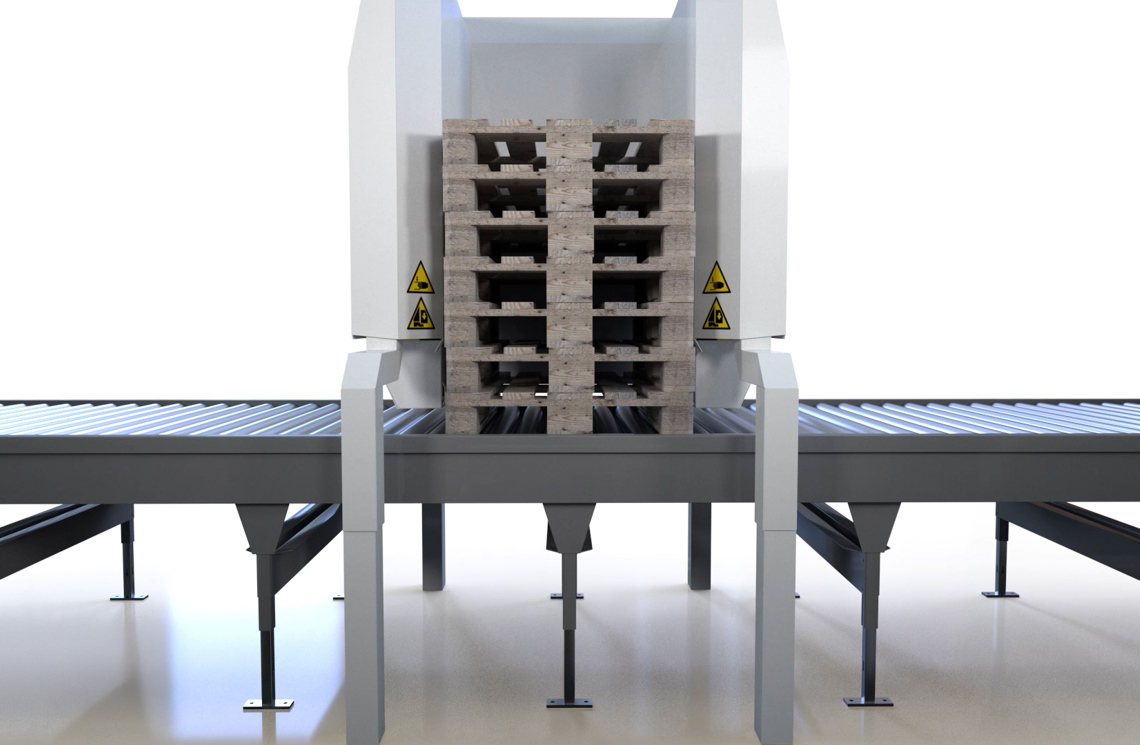

The pallet magazine, which is constructed 100% for your project, is the ideal component for stacking and destacking empty pallets in production lines

Are you ready to save time and money on the design and production of pallet magazines for your palletising projects? Then outsource with PALOMAT® Inline!

Request quote

Brochure (PDF)

100% customised to your project

You save time on development, design, and production

Flexible and thoroughly tested product

Over 30 years of experinece

Why you should choose PALOMAT® Inline

PALOMAT® Inline pallet magazine is the ideal component for stacking and destacking empty pallets in production lines.

100% customised to your project
Regardless of conveyor type, 4-way pallet type and pallet direction, PALOMAT® Inline is suitable for your project
PALOMAT® Inline is equipped with a terminal box for external control
Complies with the current machinery directive
Easily integrated into the complete system

With our automatic standard product, you achieve an efficient, reliable, and economical production line while improving your project’s bottom line. Get one step closer to automated pallet handling. Outsource your next pallet magazine to the expert: PALOMAT®.

Get a offer!

A win for your business

Save time on development, design, and production
Save time on commissioning and testing – and preparing documentation
100% customised to your pallet and your palletising project
Minimise the risk of errors and omissions. You get a complete, flexible, and proven standard product
Easy to integrate into a complete system

Send your enquiry

Prepared for PLC – supplied with a terminal box for external control
You will receive drawings of the PALOMAT® for your own layout (DWG/STEP)
You receive technical documentation in your customers' languages
A quality product at a competitive price
Technical support – 24/7/365, with more than 30 years of experience

Video

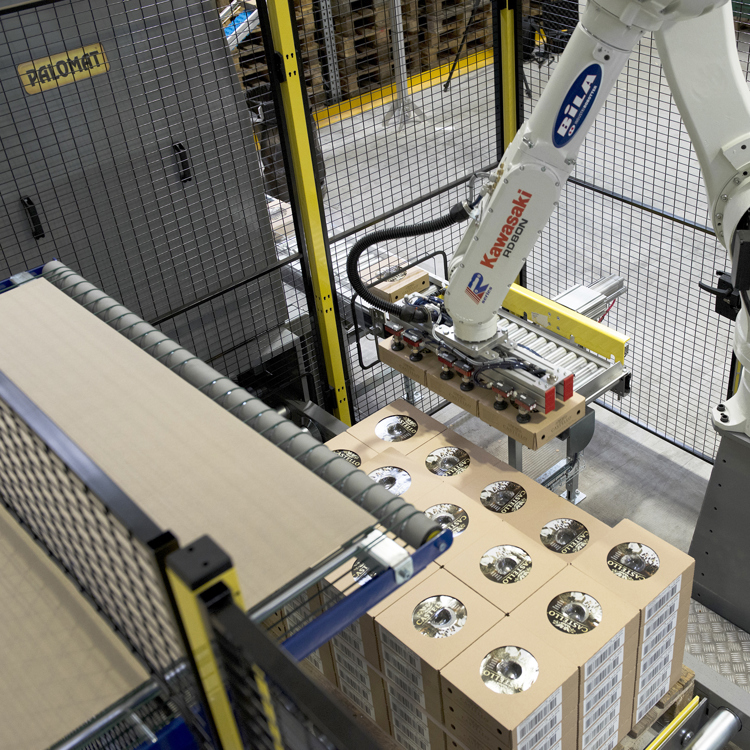

PALOMAT® Inline Automation solutions

Get inspired on how we can assist you and your company. See how PALOMAT® Inline has helped our customers and streamlined their workflow and pallet handling

Watch videos

PALOMAT®

The market's preferred supplier of pallet magazines

PALOMAT® – the world's leading manufacturer of pallet magazines and with more than 30 years of experience and expertise in development, design, and production.

At PALOMAT®, we always deliver a high quality, thoroughly tested product. This has made us the most preferred supplier of pallet magazines at a wide variety of national and international companies.

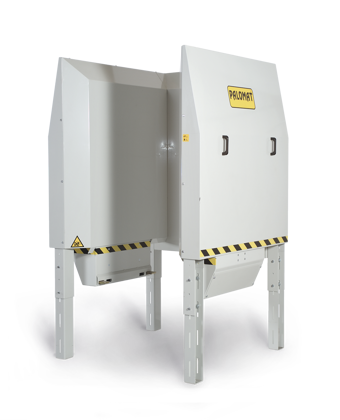

PALOMAT® Inline

100% customised to your project

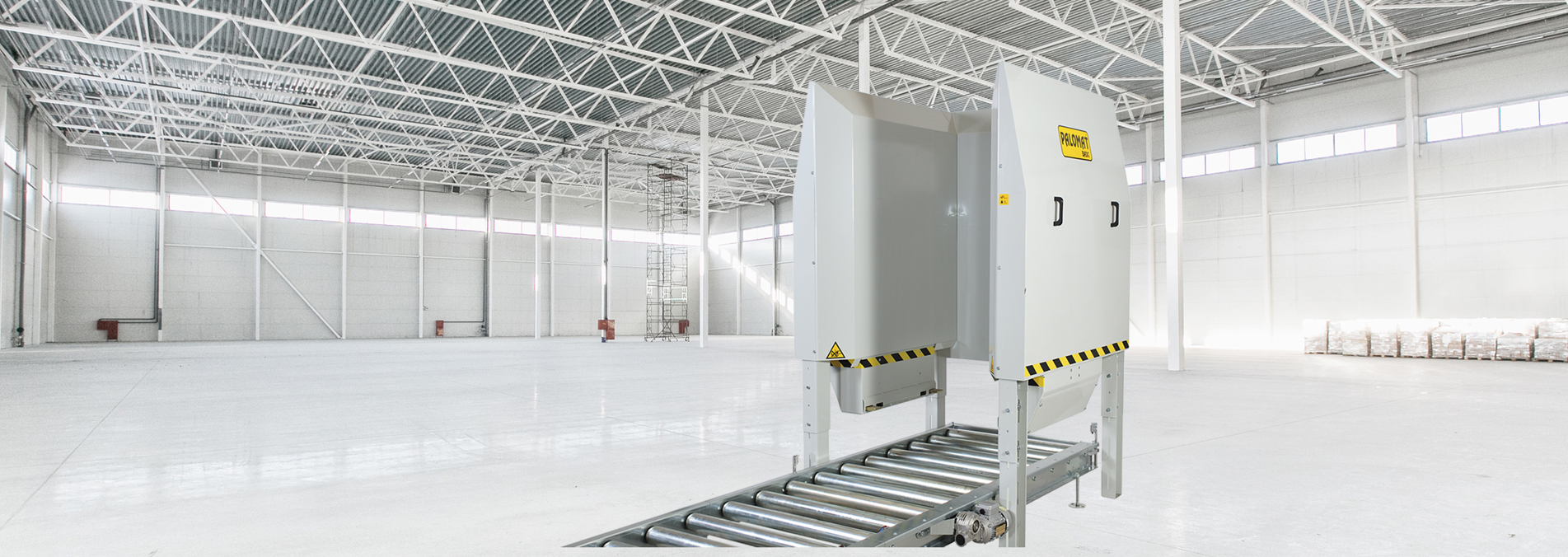

PALOMAT® Inline’s exceptional flexibility makes it possible to adapt the standard product 100% to your specific project. It can be placed over all types of conveyers, can handle all types of 4-way pallets, is designed for all pallet directions, conveyer widths and conveyer heights and can handle various pallet sizes in the same pallet magazine/ pallet dispenser.

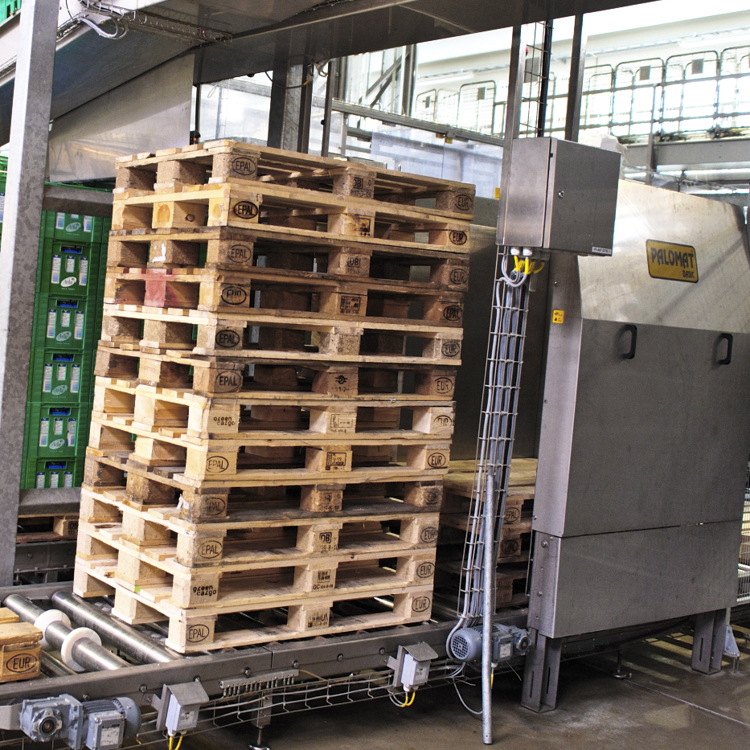

With the many surface treatment options, you can also install the pallet magazine in a wide range of environments. PALOMAT® Inline is produced in all RAL colours, stainless (AISI 304) or electro-galvanised.

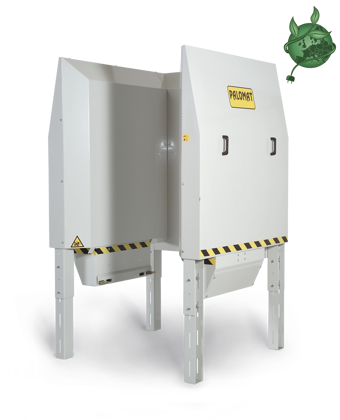

PALOMAT Inline

Electrical data
Type	Funktion	Psc.	I/O	Power Consumption	Power Consumption per unit
Sick - VTE18-3F4712	Photoelectric sensor	2	2 input	30mA - 0,72W	60mA - 1,44W
Smc - D-A93L	Reed switch(Top and bottom) - Lifting cylinder (2x2 in serie)	4	2 input	20mA - 0,48W	80mA - 1,92W
Smc - D-A93L	Reed switch (Middle) - Lifting cylinder	2	2 input	20mA - 0,48W	40mA - 0,96W
Smc - D-C73L	Reed switch - Gripping cylinder (2x2 in serie)	4	2 input	20mA - 0,48W	80mA - 1,92W
Smc - Solenoid	Solenoid for lifting	4	4 input	17mA - 0,40W	67mA - 0,80W
Smc - Solenoid	Solenoid for gripping	2	2 input	17mA - 0,40W	34mA - 0,80W

Max power consumption at 24V DC: 361mA - 8,66W

Pneumatic data
Air quality:	Compressed air quality after ISO 8573-1 (3.4.3)

Class	Particles Max. µm	Particles Max. mg/m3	Water Content PDP ℃*	Water Content g/m3**	Residal Oil mg/m3
1	0,1	0,1	-70	0,003	0,01
2	1	1	-40	0,15	0,1
3	5	5	-20	0,88	1
4	15	8	+3	6	5
5	40	10	+7	7,8	25
6			+10	9,4

*PDP = Pressure Dew Point = the temperature below which the compressed air is to be cooled before its harmful water vapour content will condense and be transformed into a liquid and harmful form.
** m³ compressed air

Air consumption for one PALOMAT® Inline unit:

Working pressure: 6-7 bar
Minimum air flow: 55L/cycle

Cycle time:

For stacking and destacking a pallet: 15 sekunder

IP Class= 64
