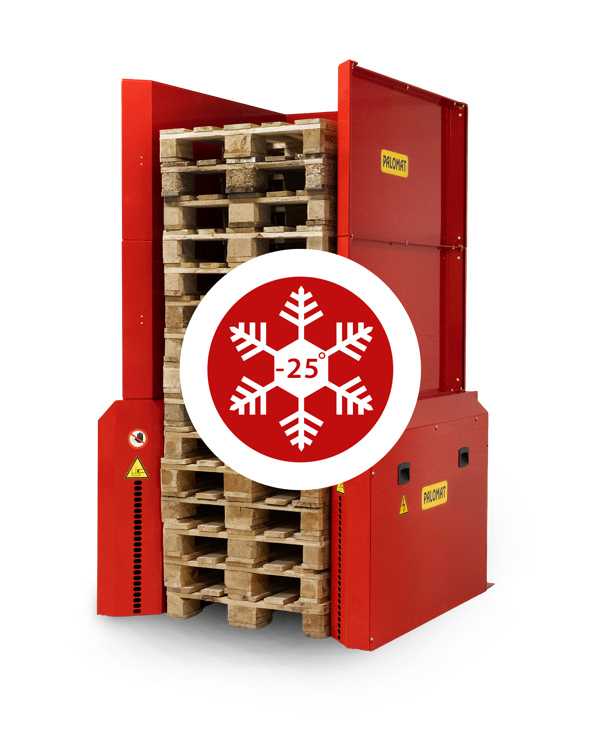

PALOMAT® Coldstore

PALOMAT® Coldstore offers fully automatic stacking and destacking in cold temperatures down to –25°C / –13°F, and it operates completely on AC power.

Choose a PALOMAT® Coldstore if you plan to both stack and destack single pallets in cold environments and wish to use only electricity as the power source.

Request quote

Datasheet (PDF)

AC operated
Plug´n´Play

Handels

1 pallet at a time

Lifting capacity
15 pallets/500kg

Frost safe

Down to –25°C / –13°F

How PALOMAT® Coldstore works

The PALOMAT® Coldstore pallet magazine automatically stacks and destacks empty pallets. The user inserts or removes the pallets using a stacking truck or fork lift truck . All pallet handling takes place at floor level. The PALOMAT® Coldstore detects the pallets via photo sensors, after which they are automatically stacked or destacked one by one.

It can operate in freezing environments down to–25°C / –13°F
It operates solely using 230V electrical power and can therefore be placed anywhere, as long as there is a 230V power outlet nearby
When selecting destacking, the PALOMAT® Coldstore can handle a stack of up to 15, which are then destacked automatically
When selecting stacking, the pallets are inserted one by one and automatically stacked to a maximum of 15. The entire stack can then be removed
The Palomat® Coldstore operates fully automatically. It is ONLY manually operated using a touch panel when switching between stacking and destacking.

To prevent condensation on the grippers, we recommend not placing the PALOMAT® Coldstore near doors or entrances, as drafts can occur in these areas.

PALOMAT® Cold Store is a standard model but can accommodate a wide variety of pallet types and sizes, with custom solutions available for specific customer needs.

PALOMAT® Coldstore for 15 pallets
Capacity	500 kg
Energy	220-240V AC / 50 Hz
Standby Consumption	23 W
Consumption during operation	550 W (at max. load of 500 kg)
Noise Level	70db(A)
Max. Fuse	16A D01
Steering	Siemens S7-1200

Standard colours:

RAL 3002 red, RAL 5002 blue, RAL 7032 grey and RAL 7035 grey.

As the PALOMAT is equipped with various sensors, wires and pipes, cleaning must only be carried out with a weak alkaline cleaning agent. The PALOMAT must not be flushed, but only wiped with a damp cloth.

PALOMAT® Coldstore for 15 pallets

Product No. Pallet size Lifting capacity Number of pallets

152601 1200x800x144 500 kg 15 pallets

152602 1200x1000x150 500 kg 15 pallets

Incl. safety frame for 15 pallets, 2x heaters and actuater grease for working i minus degrees.

PALOMAT® Coldstore - in stainless steel

The PALOMAT® has the same function as a standard PALOMAT®

Greenline. All PALOMAT parts are made in stainless steel and therefore ideal for wet areas, e.g. in the production. It is very well suited to the food processing industry. Itcan be cleaned with a weak alkaline cleaning agent.

Product No. Pallet size Lifting capacity Number of pallets

152601-SS 1200x800x144 500 kg 15 pallets

152602-SS 1200x1000x150 500 kg 15 pallets

Incl. safety frame for 15 pallets, 2x heaters and actuater grease for working i minus degrees.
PALOMAT® Coldstore datasheet

PALOMAT® Stand Alone brochure
See PALOMAT® Installation videos here

Possible options for your PALOMAT® Coldstore

Truck protection (H:300 x W:310)

The truck protection is produced in 10 mm steel and can be offered as an extra protection of the front sensors.

The truck protection is two separate parts, which are mounted into the floor in front of the PALOMAT®. The solution is used especially by companies, which handle pallets by forklifts.

Truck protection (H:1.000 x W:250)

The truck protection is produced in 10 mm steel and can be offered as an extra protection of the front sensors.

The truck protection is two separate parts, which are mounted into the floor in front of the PALOMAT®. The solution is used especially by companies, which handle pallets by forklifts.

Truck protection (H:300 x W:250)

The truck protection is produced in 10 mm steel and can be offered as an extra protection of the front sensors.

The truck protection is two separate parts, which are mounted into the floor in front of the PALOMAT®. The solution is used especially by companies, which handle pallets by forklifts.

Maximum indicator

A Sick-sensor for indicating when a pallet stack automatically should be destacked onto the floor. If the user for examples wants the PALOMAT® to stop at 15 pallets, a maximum indicator can be mounted on the safety frame or on a pole. When the maximum indicator indicates the specified number of pallets, the stack is automatically put on the floor. The stack is then ready for pickup by for example a stacker.

The function can also be done manually using the touch panel.

Signal tower incl. maximum indicator

A signal tower with a three-colour LED, to assist the user in
operating the machine. The signal tower includes Sick sensors
that detects when the pallet stack is full or empty. If the
Palomat needs to stop e. g. at 15 pallets, the signal tower with
maximum indicator can be mounted in the safety frame or on
a bar. When the maximum indicator is actuated, e. g. at 15
pallets, the lamp lights blue and the stack is automatically put
down on the floor.

Safety frame with gate for 15 pallets

The gate is a part of the safty frame and is mounted for added safety. The PALOMAT® can only be operated when the gate is closed and locked with the gate safety switch. The gate covers the right front from the top of the second pallet at floor level to the top of the safety frame.

Stopblocks

The stop blocks are a perfect option when the PALOMAT® needs to handle pallets where the runners at the bottom are crosswise to the hand pallet truck. When pulling out the hand pallet truck from the PALOMAT®, the two stop blocks hold the pallet in place, keeping it in the magazine.

The stop blocks are installed at the front of the PALOMAT®, one on each side next to the front sensors.

Switch disconnector

The switch disconnector enables disconnection from the main supply right on the machine. The switch disconnector can be locked, e.g. when servicing the machine.

This is an advantage and a safety feature for maintenance of the PALOMAT® unit. The switch disconnector is positioned under the main supply.

Greenline Service Kit

Our service kit contain the necessary spare parts + tools, for PALOMAT® Greenline. In here, you always have the most important spare parts gathered in one place.

Prepared for information via SMS/E-mail

An interface sends an e-mail or SMS to the responsible for the PALOMAT®, e.g. when the magasin is empty or when there is an error with the PALOMAT®. It is installed with a mobile data sim-card (delivered by the customer) or a patchcabel, which is connected to the company’s network.
